OVHD, DSTV Explora Installation Diagram / Sample Distribution diagram to multiple displays

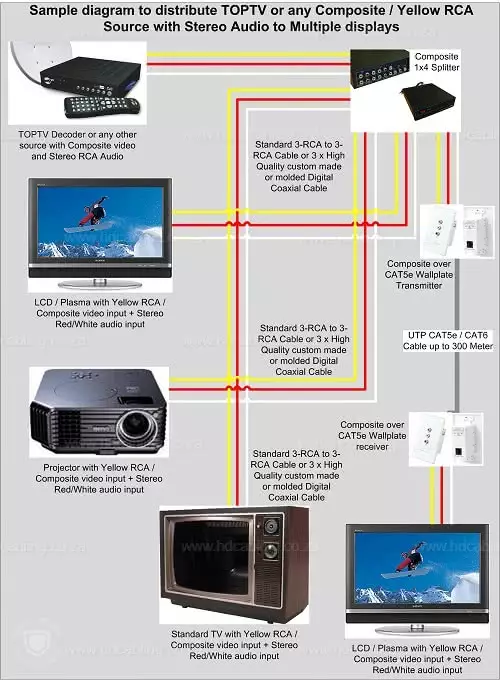

Example Standard AV (Composite Video Distribution)

Use the diagram below as example to distribute a composite / Yellow RCA source signal (OVHD, Standard PVR / Decoder, Playstation 1, Playstation 2, Standard DVD Players etc) to multiple displays. All components below may not be needed and longer distances are indicated using composite video over CAT5e / CAT6e extenders.

OVHD, DSTV Explora Installation Diagram / Sample Distribution diagram to multiple displays

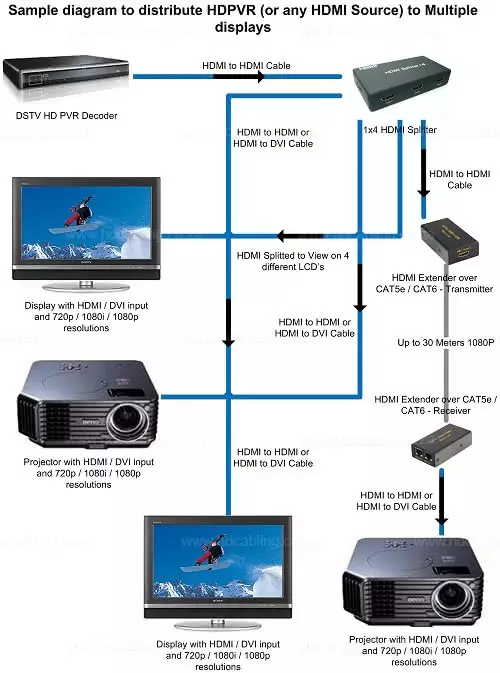

Example Simple HDMI Distribution

Use the diagram below as example to distribute a HDMI source signal (HDPVR, Playstation 3, Xbox 360, Apple TV etc.) to multiple displays. All components below may not be needed and longer distances are indicated using HDMI / DVI video over CAT5e / CAT6e.

OVHD, DSTV Explora Installation Diagram / Sample Distribution diagram to multiple displays
