Fiber Visual Fault Locator Pen 10mW (Fiber Optical Light Pen) – Fiber Fault Trace Tool
The Fiber Locator / Fiber Optical Light Pen 10mW is for fiber tracing, fiber routing and continuity checking in an optical network during and after installation. It includes finding the breakpoints, poor connections, bending or cracking in fiber optic cables.

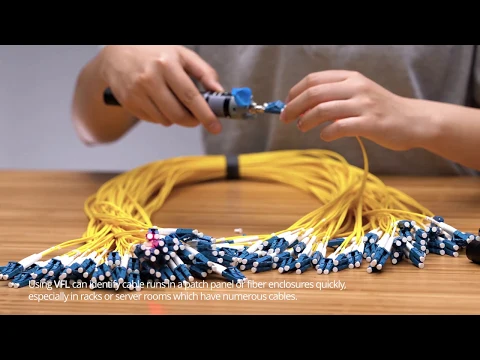

Fiber Optic Pen Visual Fault Finder Instructional Video and Usage
Features
- 10MW Output power
- Up to 10KM Testing
- 2.5mm Universal Connecter
- Portable and easy to use
- Low battery Indicator
No Batteries Included
Specification:
| Type | TL532 Pen-type  Visual Fault Finder |
| Central  Wavelength | 650nm+-10nm  (635nm can be required on request) |
| Emitter  Type | FP-LD |
| Output  Power | 10mW |
| Optical  Connector | 2.5mm  universal connector for test different ST, SC, FC interferes |
| Operating  Model | Both CW and  Pulse available |
| Pulse  Frequency | 2~3Hz |
| Power  Supply | 2 x AA alkaline batteries |
| Battery  Operating Time | 650nm 1mw >65hour 650nm 3mw>50hour 650nm 10mw>15hour
Test with  Panasonic LR6AAALKALINE battery |
| Operating  Temperature | -10–+60 (oC) |
| Storage  Temperature | -40–+70 (oC) |
| Dimension  (mm) | 15X180 |
| Weight | 200g(Without battery) |
